Mimosa A5 Multipoint Access Point
Amazing Access All Around


Mimosa A5 Multipoint Access Point

Mimosa Wireless Products
Mimosa Access Point
Mimosa A5-14
5GHz 14 dBi 802.11ac 4x4 MU-MIMO Wi-Fi Omni Access Point (P/N 100-00017)
#A5-14
Our Price: $949.00

Click here to jump to more pricing!

Overview:

Faster than a streaming millennial and more powerful to enable suburban and urban applications. The Mimosa A5 unique quad-panel MIMO technology delivers industry leading performance for high density multipoint broadband applications.

The Mimosa A5 access point delivers cutting-edge multipoint technology for service providers to affordably deliver the industry’s first scalable gigabit wireless broadband network.

Fiber Speed Access
Capable of delivering the speed business users and consumers need at a fraction of the cost of delivering fiber to the premise.

Network-Wide Cloud Control
Mimosa Cloud makes deployment a breeze, interacting with devices network-wide to proactively assist the A5 to optimize network and subscriber experience for the best performance and capacity management.

Smart Quad Panel
Experience unprecedented coverage and gain with the first directional MIMO technology providing four individual 90º panels that uniquely transmit MIMO streams only in the direction of a desired client. The access point is also freed up to simultaneously transmit to an additional client in a different direction.

Working Above the Noise
Advanced Auto-Gain Control techniques automatically squelch out underlying interference with only 10 dB of operating margin required to deliver incredible client performance.

Compact and Fast
With up to 1.5 Gbps of total capacity, the Mimosa A5 is the industry’s fastest multipoint solution in a tiny form factor, making suburban rooftop or urban installation a fast, easy and discrete solution.

Network Scalability Perfected
Unique integrated high precision GPS Sync technology allows every deployed device to be collaboratively synchronized across the network, allowing easy channel reuse to save spectrum network-wide.

Applications


Suburban and Urban wireless broadband

Suburban and Urban wireless broadband

Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)

Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)

Features:

Smart Quad-Panel MIMO Technology
Smart Quad-Panel MIMO Technology

Generate more capacity with less interference! Mimosa introduces the fist directional MIMO technology, providing 4 individual 90º panels that can uniquely transmit MIMO streams only in the direction of a desired client. This also frees up the access point to simultaneously transmit to an additional client in a different direction using game changing Multi-User MIMO technology.

Fiber Speed Access at a Fraction of the Cost

With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.

Fiber Speed Access at a Fraction of the Cost

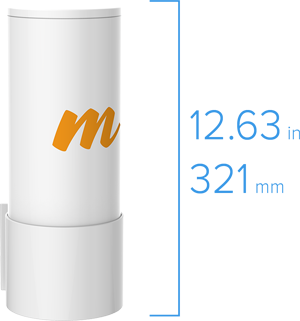

Beautifully Compact

Delivering leading performance in a tiny form factor, the A5 (14 dBi) makes any suburban rooftop or urban installation a fast, easy and discrete solution.

Beautifully Compact

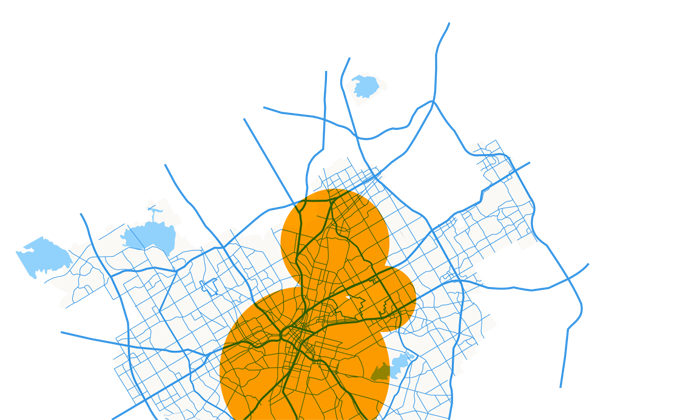

Network Scalability Perfected

Unique integrated high precision GPS Sync technology in each Mimosa A5 allows every deployed device to be collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide, and together with the Mimosa Cloud is incredibly simple to deploy and optimize network spectrum use and performance across all your deployed devices.

Network Scalability Perfected

Ultra Capacity TDMA

Time Division Multiplexed Access techniques have proven to provide significant improvements when scaling the number of clients, versus Carrier Sensing approaches used in the Wi-Fi technologies. When further optimized by dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction, and allocate upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Ultra Capacity TDMA

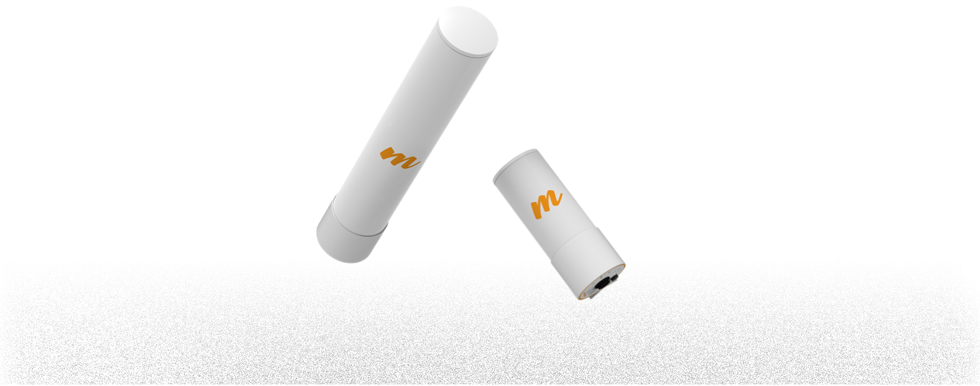

Working Above The Noise

Advanced Auto-Gain Control (AGC) techniques automatically squelch out underlying interference with only 10 dB operating margin required to deliver incredible client performance.

Working Above The Noise

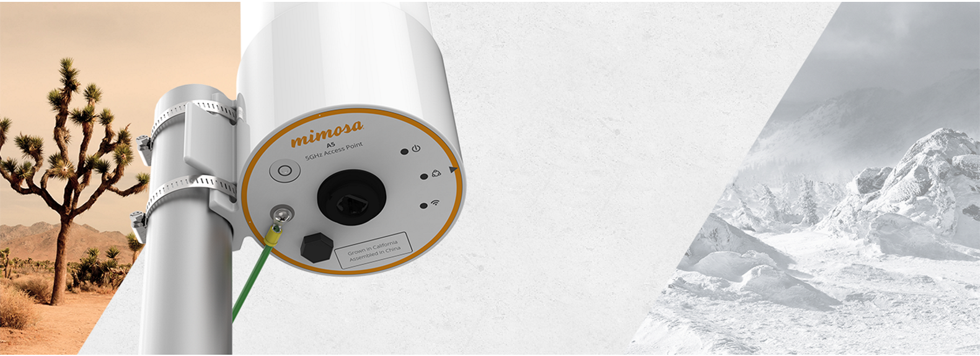

Ultra Rugged

Carrier grade IP67 design allows the A5 to withstand the harshest of environmental conditions.

Ultra Rugged

Add Subscribers With Ease

Install, aim and go! Our multipoint solution is designed to instantly securely add C5 client devices to any Mimosa A5 on your network automatically with 1-click authentication. We've eliminated manual installation and pre-provisioning complexity, letting you focus on adding subscribers quickly.



Mount

Mount

Aim

Aim

One Click Connect

One Click Connect

New Happy Customer

New Happy Customer

Specifications:


Mimosa A5 Access Specifications
Performance
Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)
Client Capacity 100 clients
Wireless Protocols WiFi Interop, Mimosa GPS Sync (TDMA)**
Radio
MIMO & Modulation 4x4:4 MIMO OFDM up to 256-QAM
Bandwidth* 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
Frequency Range 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
Max Output Power 30 dBm
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
Gain A5-14: 14 dBi
A5-18:
18 dBi
Beamwidth (3dB) 70° azimuth
Electrical Downtilt A5-14: none
A5-18:
Front-to-Back Ratio >30 dB
Cross-Polar Isolation >20 dB or greater
Polarization Circular, four alternating panels
Power
Max Power Consumption 25W
System Power Method 802.3at compliant
System Lightning & ESD Protection 6 kV
PoE Power Supply 802.3at and Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions A5-14 dBi: 314 mm (12.36”) height 142.44 mm (5.61”) width
A5-18 dBi: 668 mm (26.29”) height 142.44 mm (5.61”) width
Weight A5-14 dBi: 1.75 kg (3.85 lbs)
A5-18 dBi: 2.73 kg (6 lbs)
Enclosure Characteristics Outdoor UVstabilized engineered polymer
Wind Survivability 200 km/h (125 mph)
Wind Loading A5-14 dBi: 7.72 kg @ 160 km/h (17.03 lbs @ 100 mph)
A5-18 dBi: 16.03 kg @ 160 km/h (35.34 lbs @ 100 mph)
Mounting Dual pole strap feed points integrated into metal base with integrated curvature for contact with mounting poles
Environmental
Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Multi-User MIMO** Device leverages beamforming to transmit to multiple clients simultaneously
Synchronization** GPS+GLONASS allows for network-wide sync and interference avoidance
Collocation** 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse
Network Processing Advanced AP control for capacity and subscriber management
Management Services Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS HTML 5-based Web UI
2.4 GHz 802.11b/g/n radio for local management access
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x RADIUS Management VLAN support
QoS Supports 4 pre-configured QoS levels
GPS Location GNSS1 (GPS + GLONASS)
Traffic Shaping Per CPE UL/DL commit and maximum rate shaping
Access Control List Permit, Deny and Remark Layer 2 and Layer 3 traffic flows
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release

Antenna Patterns:

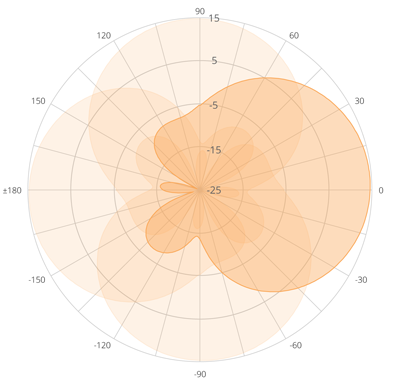

A5-14 dBi Antenna Polar Plot

A5-14 dBi Antenna Polar Plot

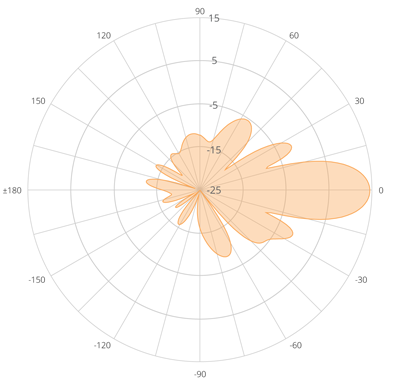

A5-14 dBi Elevation Polar Plot

A5-14 dBi Elevation Polar Plot

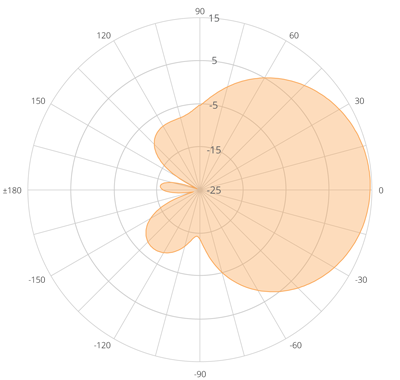

A5-14 dBi LHCP/RHCP Azimuth Polar Plot

A5-14 dBi LHCP/RHCP Azimuth Polar Plot

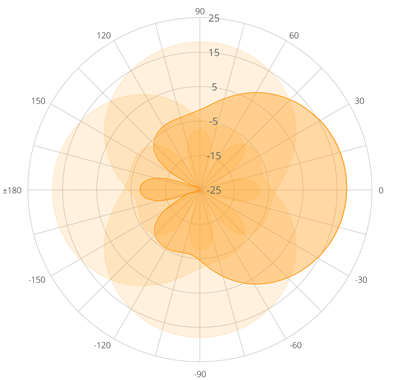

A5-18 dBi Antenna Polar Plot

A5-18 dBi Antenna Polar Plot

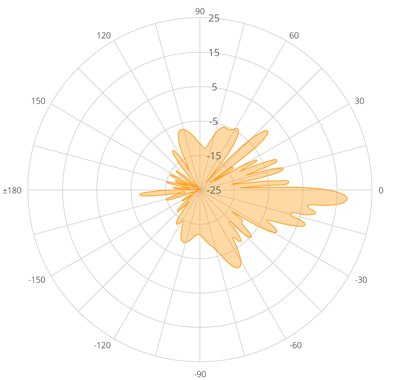

A5-18 dBi Elevation Polar Plot

A5-18 dBi Elevation Polar Plot

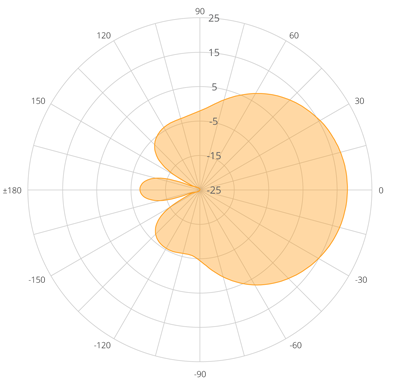

A5-18 dBi LHCP/RHCP Azimuth Polar Plot

A5-18 dBi LHCP/RHCP Azimuth Polar Plot

Views:

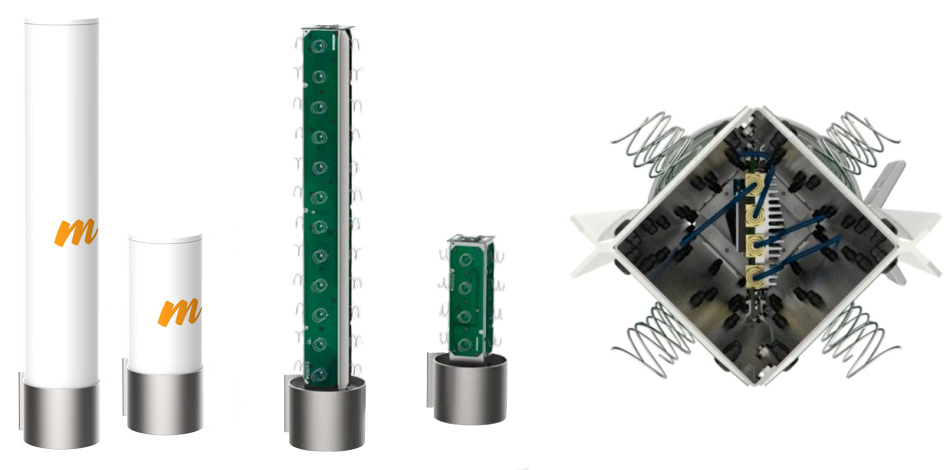

A5-14 dBi and A5-18 dBi Quad Sector 360° Antenna and 360° Antenna Top Down View

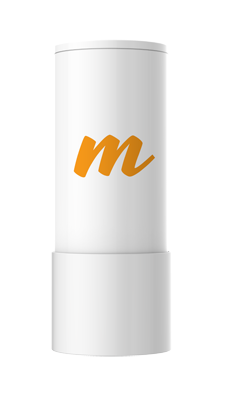

A5-14 dBi View
A5-14 dBi View

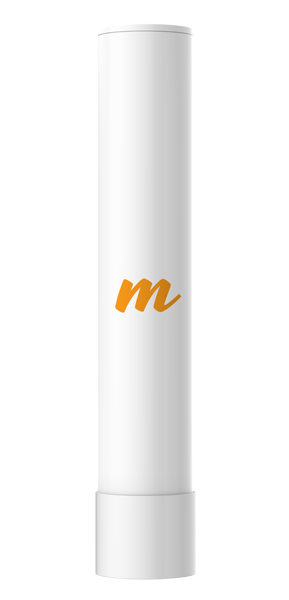

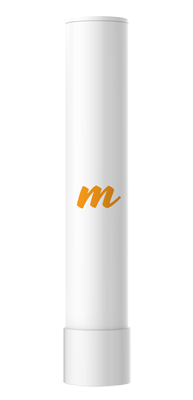

A5-18 dBi View
A5-18 dBi View

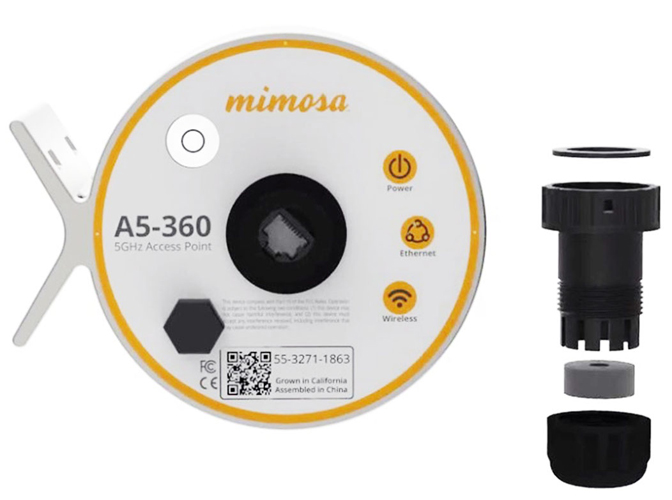

Bottom View
Bottom View


Documentation:

Download the Mimosa A5 Access Point Datasheet (.PDF)
