Mimosa A5c Multipoint Connectorized Access Point
Super for Sectors


Mimosa A5c Multipoint Connectorized Access Point

Mimosa Wireless Products
Mimosa Access Point
Mimosa A5c 4.9-6.2 GHz, Multipoint Connectorized Access Point
#A5c
Our Price: $698.00

Click here to jump to more pricing!

Overview:

With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network. The A5c is well suited for long range pole and tower multipoint applications, Access Point Collocation (GPS Sync) and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz).

Mimosa A5c Multipoint Connectorized Access PointIncreased Capacity at Each Site
With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole.

Ultra High Client Capacity
T DMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Network Scalability Perfected
Every deployed device is collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide. Connected to Mimosa Cloud, deployment of the A5c is incredibly simple with network spectrum use and performance optimized across all of your deployed devices.

Fiber Speeds
With client speeds capable of 500 Mbps+ and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.

Add Subscribers with Ease
Install, aim and go! We’ve eliminated manual installation and pre-provisioning complexity so you can focus on adding subscribers quickly

Applications


Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)

Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)

Access Point Collocation (GPS Sync)

Access Point Collocation (GPS Sync)

Tower and Collocation Sites

Long range pole and tower multipoint

Features:

Fiber Speed Access at a Fraction of the Cost

With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.

Fiber Speed Access at a Fraction of the Cost

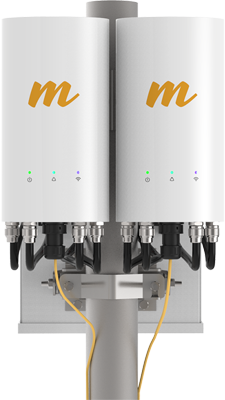

Increased Capacity at Each Site

Increased Capacity at Each Site

With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing deployed Mimosa A5 and B5 site and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices need to be installed "back-to-back" on the same tower or pole.


Network Scalability Perfected

Unique integrated high precision GPS Sync technology in each Mimosa A5 allows every deployed device to be collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide, and together with the Mimosa Cloud is incredibly simple to deploy and optimize network spectrum use and performance across all your deployed devices.

Network Scalability Perfected

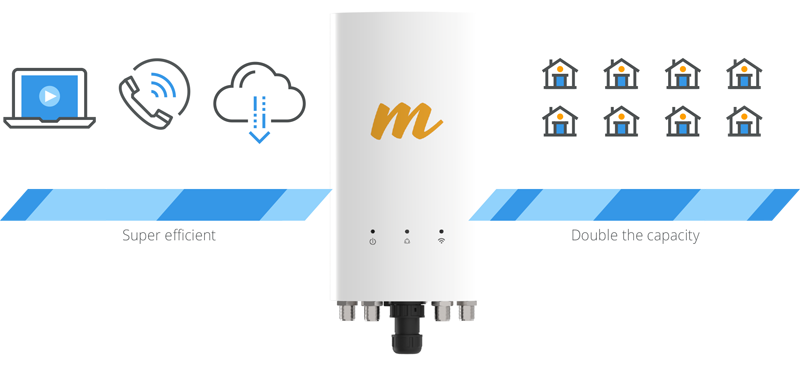

Ultra Capacity TDMA

Time Division Multiplexed Access techniques have proven to provide significant improvements when scaling the number of clients, versus Carrier Sensing approaches used in the Wi-Fi technologies. When further optimized by dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction, and allocate upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Ultra Capacity TDMA

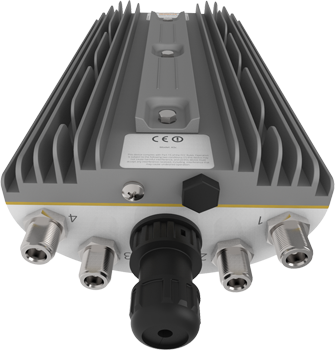

Massive Sector Capacity

A5c is the first outdoor 4x4:4 solution leveraging advanced antenna beamforming and Multi-User MIMO technology. With 4 integrated collaborative antennas, the A5c creates separate "beamforms" to target each client uniquely. Meanwhile a second unique beamform can target a second client simultaneously, getting twice the performance out of the channel.


Massive Sector Capacity

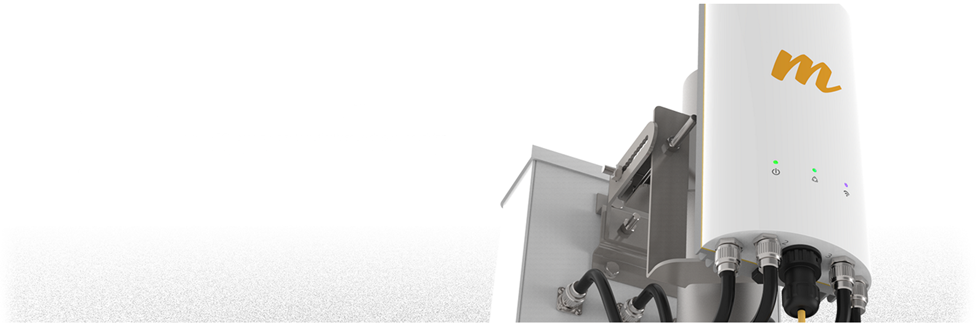

Working Above The Noise

Advanced Auto-Gain Control (AGC) techniques automatically squelch out underlying interference with only 10 dB operating margin required to deliver incredible client performance.

Working Above The Noise

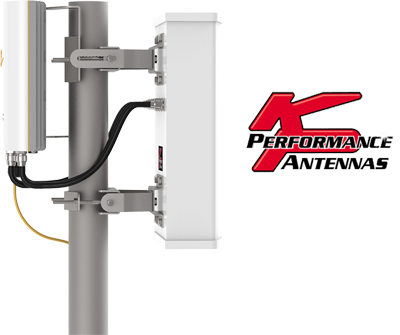

Custom Engineered



Custom Engineered

The unique compact X4 (4 antenna single A5c) and X8 (8 antenna dual A5c) are our suggested from KP Performance are engineered specifically for Mimosa's MIMO technology.

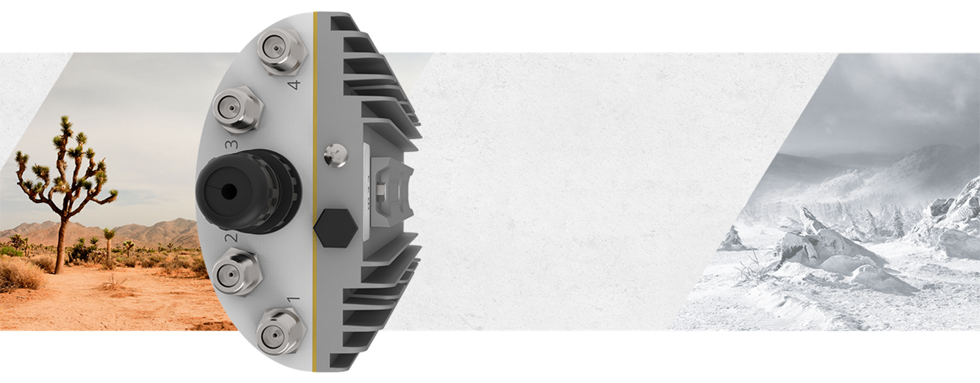

Ultra Rugged

Carrier grade IP67 design allows the A5c to withstand the harshest of environmental conditions.

Ultra Rugged

Add Subscribers With Ease

Install, aim and go! Our multipoint solution is designed to instantly securely add C5 client devices to any Mimosa A5c on your network automatically with 1-click authentication. We've eliminated manual installation and pre-provisioning complexity, letting you focus on adding subscribers quickly.



Mount

Mount

Aim

Aim

One Click Connect

One Click Connect

New Happy Customer

New Happy Customer

Specifications:


Mimosa A5c Access Specifications
Performance
Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)
Client Capacity 100 clients
Wireless Protocols WiFi Interop, Mimosa GPS Sync (TDMA)**
Radio
MIMO & Modulation 4x4:4 MIMO OFDM up to 256-QAM
Bandwidth* 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
Frequency Range 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
Max Output Power 30 dBm
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 25W
System Power Method 802.3at compliant
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions Height: 300 mm (11.81”)
Width: 151 mm (12.40”)
Depth: 85 mm (3.35”)
Weight 1.75 kg (3.86 lbs)
Enclosure Characteristics Outdoor UVstabilized engineered polymer with integrated mounting panel
Mounting Dual pole strap mount and slip on mount for comparable antenna
Connector Type Female Type N (x4)
Environmental
Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Multi-User MIMO** Device leverages beamforming to transmit to multiple clients simultaneously
Synchronization** GPS+GLONASS allows for network-wide sync and interference avoidance
Collocation** 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse
Network Processing Advanced AP control for capacity and subscriber management
Management Services Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS, HTML 5-based Web UI, 2.4 GHz 802.11b/g/n radio for local management access
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x RADIUS Management VLAN support
QoS Supports 4 pre-configured QoS levels
GPS Location GNSS1 (GPS + GLONASS)
Traffic Shaping Per CPE UL/DL commit and maximum rate shaping
Access Control List Permit, Deny and Remark Layer 2 and Layer 3 traffic flows
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release

Views:

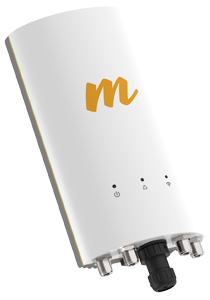

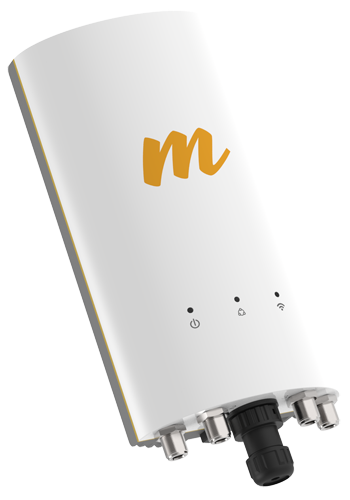

Angle View
Angle View

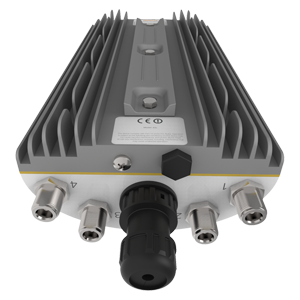

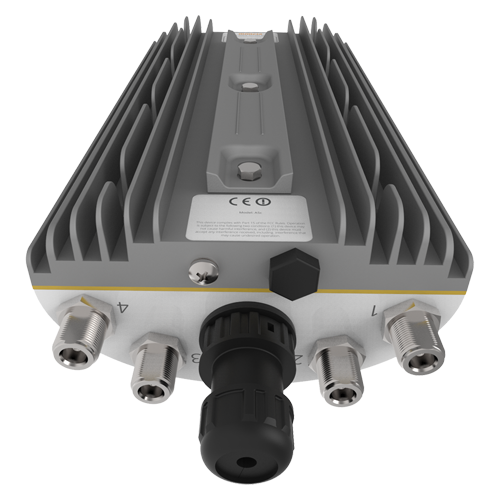

Backplate View
Backplate View

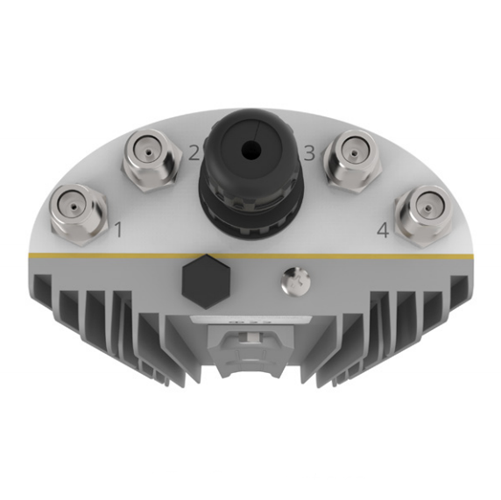

Connectors View
Connectors View


Documentation:

Download the Mimosa A5c Access Point Datasheet (.PDF)
