Mimosa B5-Lite Unlicensed Backhaul
Fast. Affordable. Easy.


Mimosa B5-Lite Unlicensed Backhaul

Mimosa Wireless Products
Mimosa Backhaul
Mimosa B5-Lite 5GHz 750Mbps Capable Ptp Backhaul (P/N 100-00024)
#B5-Lite-NA
Our Price: $299.00

Click here to jump to more pricing!

Overview:

Mimosa B5-Lite Unlicensed BackhaulSwitch to the award-winning Mimosa B5-Lite, the easiest, fastest and most affordable wireless bridge kit on the market. This backhaul radio is ideal for connecting large properties, co-located office buildings, hospital buildings or campuses. No fiber in your future? No problem - the B5-Lite is a great short range fiber-digging alternative. Public safety providers can also take advantage of the licensed 4.9 GHz safety band and easily deploy the B5-Lite for an immediate backhaul boost.

The B5-Lite is a fantastic addition to any network. Make the change today and discover blazing backhaul.

Superior Performance
Our speeds will blow you away. With up to 750 Mbps and under 1 ms of latency, high performance has never been this affordable.

Monitor with Ease
Assessing link health and identifying potential problems is easy. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.

Rugged and Affordable
Extreme outdoor conditions have nothing on the B5-Lite. The B5-Lite handles huge fluctuations with incredible affordability.

Just Mount and Go
Connect quickly with our complete kit including super compact integrated antennas and wall mounts. Includes optional pole mounting kit.

Applications


Connectivity across large properties

Connectivity across large properties

Short range fiber digging alternative

Short range fiber digging alternative

Licensed Public Safety operation (4.9 GHz)

Licensed Public Safety operation (4.9 GHz)

Building to Building

Building to Building

Features:

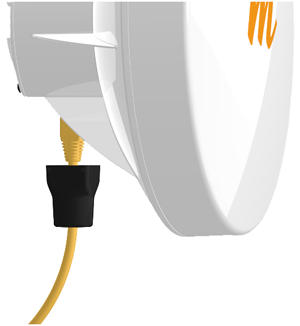

Rugged and Affordable

Outdoor rugged designs typically come at significant cost. The B5-Lite challenges this norm by handling extreme outdoor conditions with incredible affordability.

Rugged and Affordable

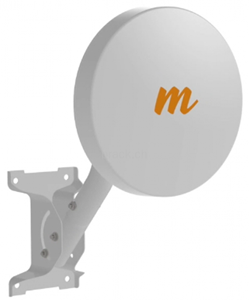

Just Mount and Go

A complete kit with super compact integrated antennas and wall mounts, makes it incredibly easy to get connected quickly. With an optional pole mounting kit, the B5-Lite easily can be mounted on street poles (horizontal or vertical), great for any public safety and security camera application.

Just Mount and Go

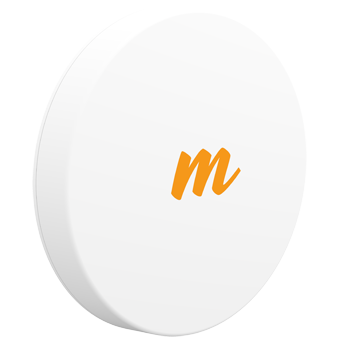

Incredibly Fast. Incredibly Affordable.

Part of the award winning Mimosa backhaul product family, the B5-Lite is an incredibly flexible way to deliver high performance, low latency fixed wireless connectivity at an unprecedented cost. Simple, affordable, rock solid. This is Real Big Wireless at a really low price.

Incredibly Fast. Incredibly Affordable.

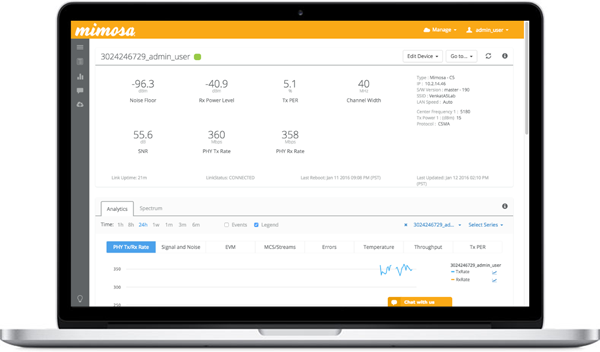

Monitor with ease, and so much more

Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier. For rich analytics and historical data collection, and problem notifications, the Mimosa Cloud+ service is available to monitor your entire network for only $99 USD per year.

Monitor with ease, and so much more

Specifications:


Mimosa B5-Lite Backhaul Specifications
Performance
Max Throughput 750+ Mbps
Low Latency Configurable to 5ms+
Wireless Protocols Auto-TDD/TDMA
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments
Frequency Range 4900-6000 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
Max Output Power 23 dBm
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
Gain 20 dBi
Beamwidth (3dB) 14° (azimuth and elevation)
Elevation Adjust ± 20° mechanical adjust
Cross-Polar Isolation >20 dB
Polarization Dual 45° slant polarization
Power
Max Power Consumption 15W
System Power Method 802.3at compliant
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions Width: 153.31 mm (6.04”)
Diameter: 260.33 mm (10.25”)
Weight 4.9 kg (10.8 lbs) with bracket
Enclosure Characteristics Outdoor UV stabilized plastic
Wind Survivability 200 km/h (125 mph)
Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
Mounting Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles. Azimuth and Elevation adjustability only provided via J-mount elevation adjustment and hose clamp loosened rotation on the pole.
Environmental
Outdoor Ingress Protection Rating IP55
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x Client
QoS Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals FCC Part 15.407and Part 90Y, IC RS210, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA- 22.2

† 4.9 GHz uses 20 MHz channel widths only (US only, regulations vary by region)

Antenna Patterns:

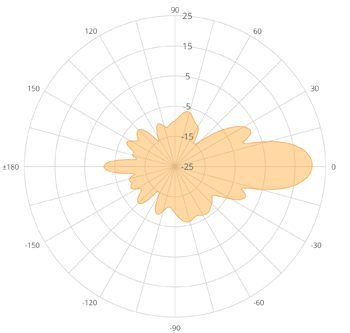

Azimuth Polar Plot

Azimuth Polar Plot

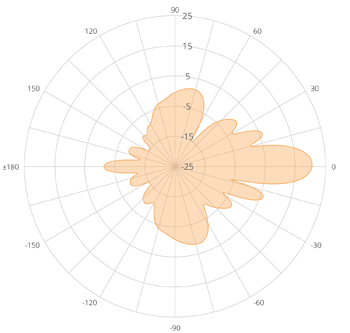

Elevation Polar Plot

Elevation Polar Plot

Views:

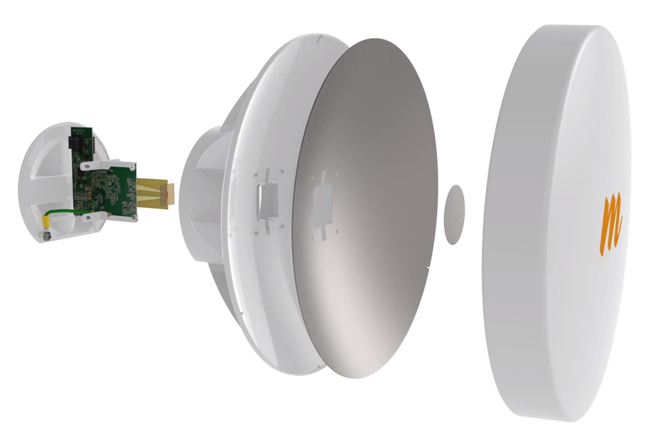

Explode View

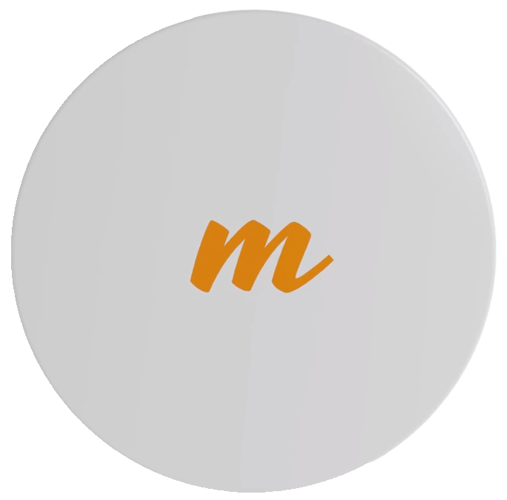

Front View
Front View

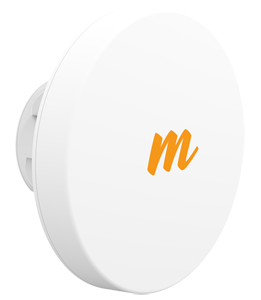

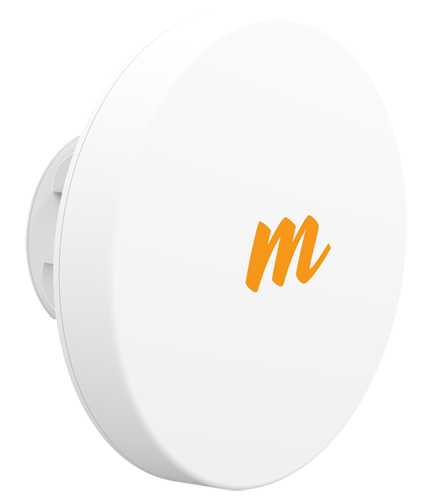

Angle View
Angle View

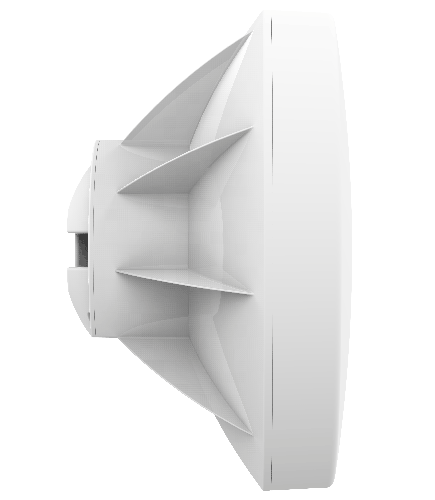

Side View
Side View

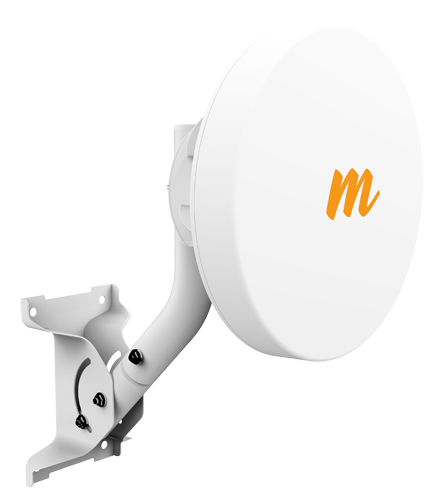

Angle with Mounted Bracket View
Angle with Mounted Bracket View

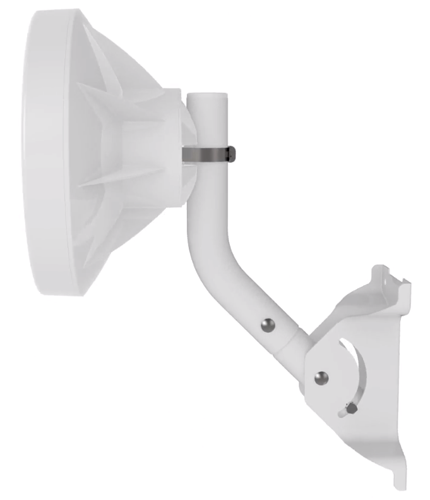

Side with Mounted Bracket View
Side with Mounted Bracket View

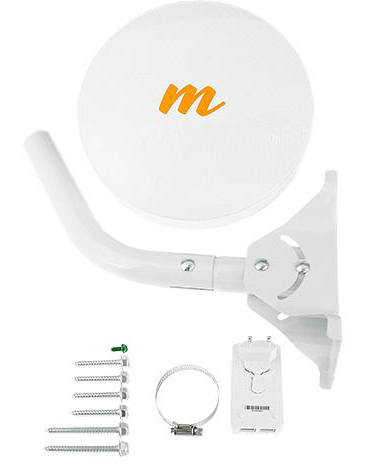

Package Contents View
Package Contents View


Backhaul Comparison:


B5 B5c B5-Lite B11
B5 B5c B5-Lite B11
Unlicensed Backhaul
25 dBi
5.15 to 5.85 GHz
Bandwidth: 12 mi @ 500 Mbps
Bandwidth: 40 mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Unlicensed Connectorized Backhaul
Requires Antenna
4.9 to 6.2 GHz
Bandwidth: 60+ mi @ 500 Mbps
Bandwidth: 120+ mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Unlicensed Backhaul
20 dBi
4.9 to 6.2 GHz
Bandwidth: 1.5 mi @ 500 Mbps
Bandwidth: 10 mi @ 100 Mbps
Auto Everything
Licensed Backhaul
Requires Antenna
10.0 to 11.7 GHz
Bandwidth: 60+ mi @ 500 Mbps
Bandwidth: 120+ mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Licensed
SFP

*TDMA and Collocation Synchronization

Documentation:

Download the Mimosa B5-Lite Backhaul Datasheet (.PDF)
