Mimosa B5 Unlicensed Backhaul
Gigabit Backhaul Made Easy


Mimosa B5 Unlicensed Backhaul

Mimosa Wireless Products
Mimosa Backhaul
Mimosa B5 5 GHz Gbps Capable PtP Backhaul (P/N 100-00001)
#B5
Our Price: $699.00

Click here to jump to more pricing!

Overview:

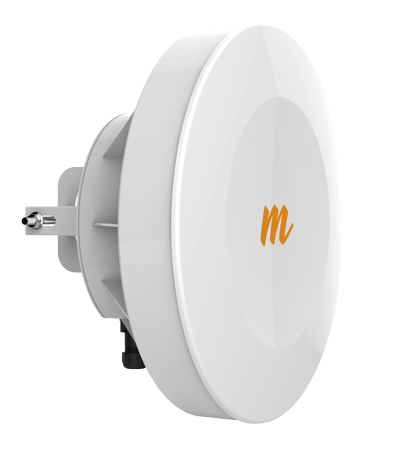

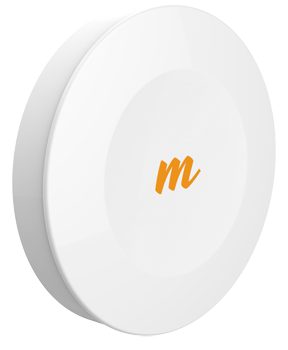

Mimosa B5 Backhaul PoleThe Mimosa B5 backhaul radio is hands down the easiest to use and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications. Ideal for collocation applications, relay sites and building-to-building settings.

Incredibly Fast. Incredibly Flexible.
Recognized as the fastest unlicensed backhaul in the industry. Extensive bandwidth control options, low latency, reserved bandwidth and GPS sync mode mean peak performance.

Monitor with Ease
Assessing link health and identifying potential problems has never been easier. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.

Ultra Rugged
Carrier-grade IP67 design allows the B5 to withstand the harshest of environmental conditions.

Just Mount and Go
The integrated high gain antenna and super easy quick mount lets you install in minutes, and accurately aim the B5 using the Mimosa smartphone aiming tool.

Easily Add New Links
Spectrum friendly. Unique high precision GPS Sync technology reuses the same channel network wide. Keep adding more capacity to more sites and waste less spectrum.

Double Reliability
Tames unlicensed spectrum interference via custom engineered multi-channel and auto-everything technology. As good as two smart links in one radio.

Applications


Building to Building

Building to Building

Relay Sites

Relay Sites

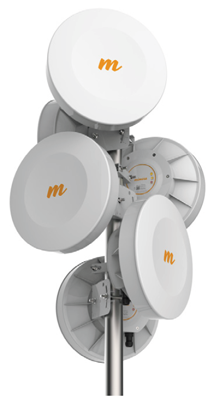

Tower and Collocation Sites

Tower and Collocation Sites

Features:

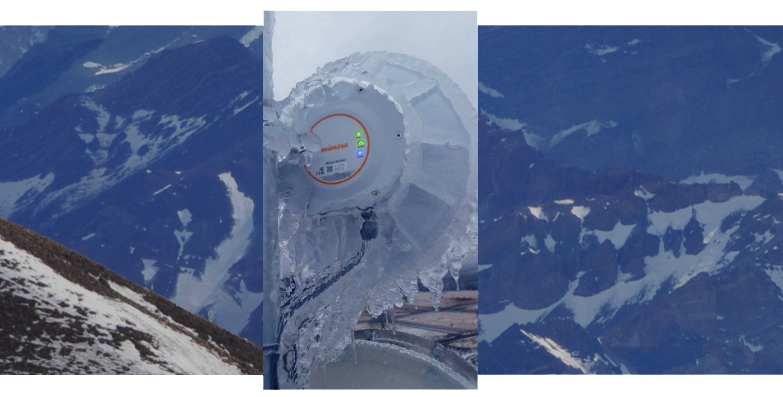

Ultra Rugged

Carrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions.

Ultra Rugged

Just Mount and Go

The integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.



Easily Add New Links
Easily Add New Links

Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.

Double Reliability

Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!

Double Reliability

Incredibly Fast. Incredibly Flexible.

Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~ 1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.

Incredibly Fast. Incredibly Flexible.

Monitor with ease, and so much more

Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier. For rich analytics and historical data collection, and problem notifications, the Mimosa Cloud+ service is available to monitor your entire network for only $99 USD per year.

Monitor with ease, and so much more

Specifications:


Mimosa B5 Backhaul Specifications
Performance
Max Throughput Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
Low Latency Configurable to 5ms+
Wireless Protocols TDMA, TDMA-FD, Auto-TDMA
Radio
MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM
Bandwidth Single or Dual 20/40/80 MHz channels
Frequency Range 5150-5875 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
Max Output Power 30 dBm (2-stream)
27 dBm (4-stream)
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
Gain 25 dBi
Beamwidth (3dB) 8° (HPOL and VPOL)
Elevation Adjust ± 20° mechanical adjust
Front-to-Back Ratio >30 dB
Cross-Polar Isolation >20 dB
Polarization Dual-Linear (horizontal & vertical)
Power
Max Power Consumption 20W
System Power Method 48 V DC 802.3 at compliant power injectors
System Lightning & ESD Protection 6 kV
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions Diameter - 442 mm (17.4”)
Depth - 362 mm (14.3”) with bracket
Weight 4.9 kg (10.8 lbs) with bracket
Enclosure Characteristics Single enclosure with radome
Outdoor UV stabilized plastic
Painted steel bracket plate
Wind Survivability 200 km/h (125 mph)
Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
Mounting Pole mounting kit included for 30mm (1.18”) to 90mm (3.54”) OD pipes
Environmental
Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Dual Link Operation 2 independent dual-stream radios operating on noncontiguous frequencies
Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
2.4 GHz 802.11b/g/n radio for local management access
Smart Antenna Alignment Hands-free dedicated 2.4 GHz Wi-Fi management radio
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security 128-bit AES PSK with hardware acceleration
QoS Supports 4 pre-configured QoS levels
GPS Location GNSS-1 (GPS + GLONASS)
Collocation Synchronization 1PPS GPS TX/RX synchronization for collocated cochannel radios
Adjustable up/downstream bandwidth ratio
Regulatory + Compliance
Approvals FCC Part 15.407, IC RSS210, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

Antenna Patterns:

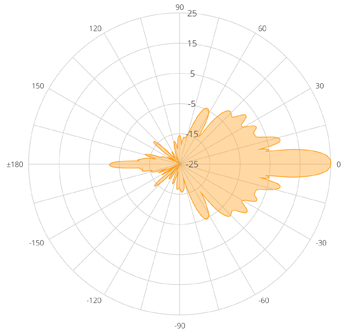

B5 Polar Plot

B5 Polar Plot

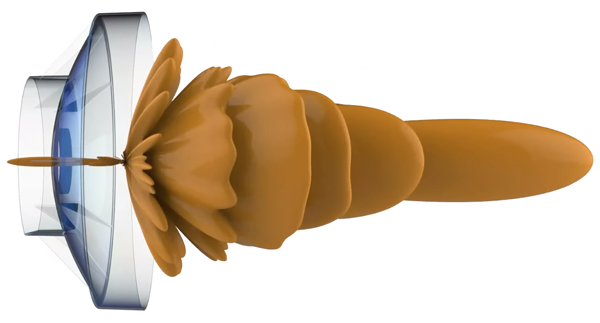

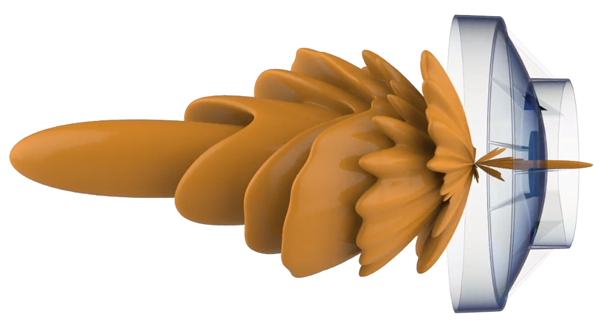

B5 Antenna Pattern

B5 Antenna Pattern Right Side

B5 Antenna Pattern Left Side

Views:

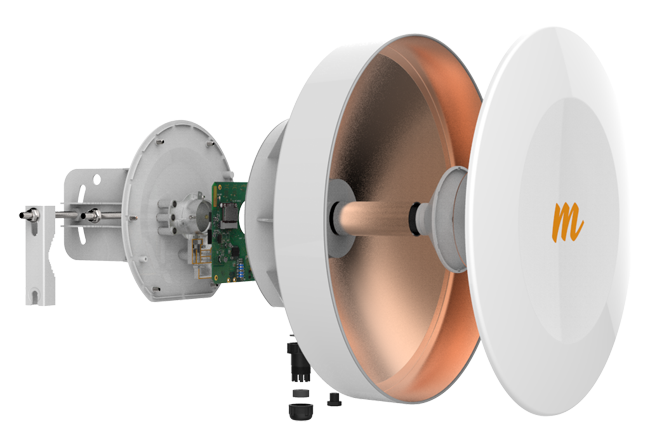

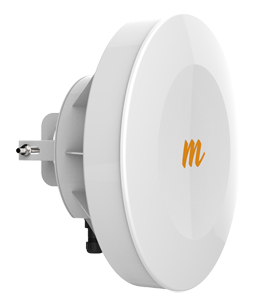

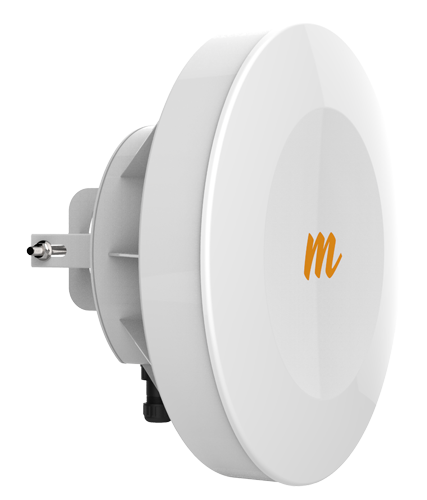

Explode View

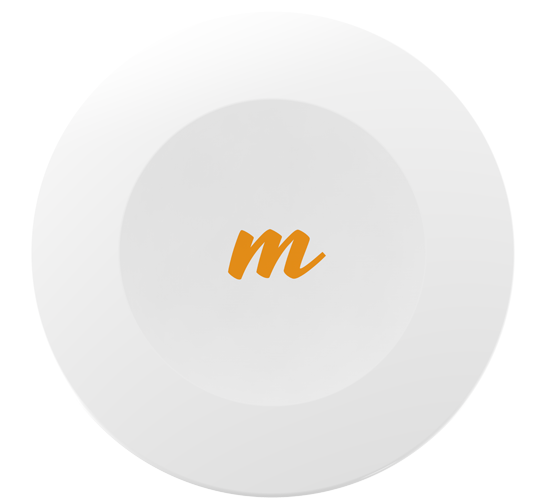

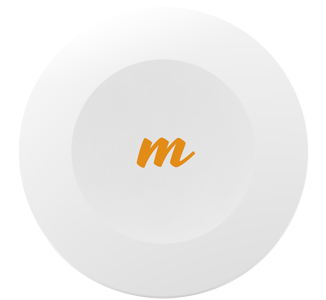

Front View
Front View

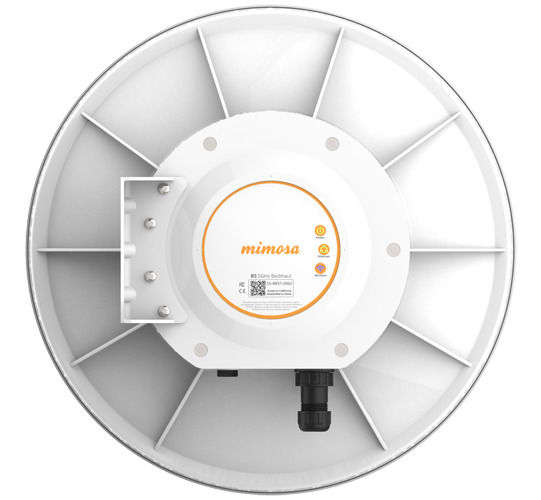

Rear View
Rear View


Angle View
Angle View

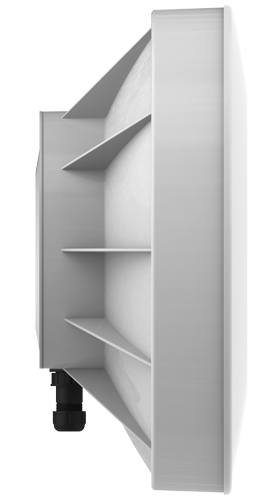

Side View
Side View

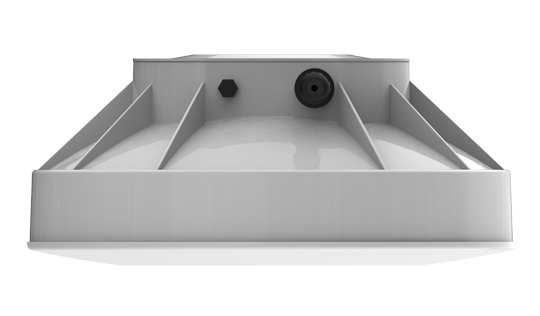

Bottom View
Bottom View

Backhaul Comparison:


B5 B5c B5-Lite B11
B5 B5c B5-Lite B11
Unlicensed Backhaul
25 dBi
5.15 to 5.85 GHz
Bandwidth: 12 mi @ 500 Mbps
Bandwidth: 40 mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Unlicensed Connectorized Backhaul
Requires Antenna
4.9 to 6.2 GHz
Bandwidth: 60+ mi @ 500 Mbps
Bandwidth: 120+ mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Unlicensed Backhaul
20 dBi
4.9 to 6.2 GHz
Bandwidth: 1.5 mi @ 500 Mbps
Bandwidth: 10 mi @ 100 Mbps
Auto Everything
Licensed Backhaul
Requires Antenna
10.0 to 11.7 GHz
Bandwidth: 60+ mi @ 500 Mbps
Bandwidth: 120+ mi @ 100 Mbps
Auto Everything
Collocation*
Sync
Dual Link
TDMA-FD*
IP67
Licensed
SFP

*TDMA and Collocation Synchronization

Documentation:

Download the Mimosa B5 Backhaul Datasheet (.PDF)
