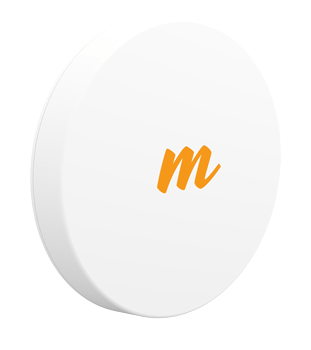

Mimosa C5 Client
Impress Your Clients


Mimosa Wireless Products
Mimosa Access Point
Mimosa C5 4.9-6.2 GHz 2x2 MU-MIMO CPE (P/N 100-00010)
#C5
Our Price: $99.00

Click here to jump to more pricing!

Overview:

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today. The Mimosa C5 is ideal for professionally installed suburban and rural fixed wireless applications.

Mimosa C5 ClientFiber Speeds to the Home
The C5 delivers the speed businesses and consumers need at a fraction of the cost of fiber to the premise.

TDMA GPS Sync Client
Upstream bandwidth and latencies are allocated on demand, enabling significantly higher overall upstream network bandwidth allocation.

Rugged and Affordable
Protection from harsh environments now comes at an affordable price. The C5 includes sealing gel and a unique cable protector that easily accommodates unterminated or pre-terminated RJ-45 cable connectors.

Mounting Options Galore
As every installation is unique, the C5 is designed to easily attach to specially designed optional mounting accessories.

Compact and Powerful
Delivers incredible range with cutting-edge dual 45° slant polarization design and aperture efficiency of greater than 50%, all in the smallest design possible.

Multi-User MIMO
Multiple clients on the same access point are coordinated to simultaneously share spectrum “spatially” via unique antenna beamforming.

Applications


Professionally installed suburban and rural fixed wireless

Professionally installed suburban and rural fixed wireless

Short to mid-range client endpoint

Short to mid-range client endpoint*

*Distances vary based on Mimosa A5 access point power and antenna gain. Please refer to the Mimosa Design Tools to simulate performance with your regional wireless regulatory restrictions.

Features:

Fiber Speed Access at a Fraction of the Cost

With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.

Fiber Speed Access at a Fraction of the Cost

Mounting Options Galore

Mounting Options Galore

Every installation can be unique, so flexibility in mounting approach is critical. The C5 easily attaches to special designed Mimosa optional mounting accessories*.

The Mimosa J-mount accessory accommodates most under roof eave mounting applications.

The Mimosa flexible pole mount accessory accommodates both vertical and horizontal pole mounting applications, as well as basic wall mounting where minimizing the distance os the C5 relative the wall is important.

*Not included, ordered separately in bulk volumes.


Finding MIMO

Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5 supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity, and can be mounted to any pole via hose clamps, or easily clipped onto antennas supporting compatible clip-on mounting brackets systems.

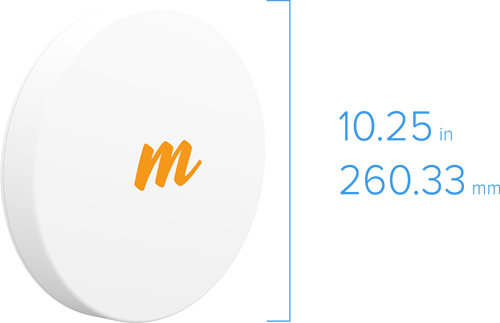

Compact But Powerful

The attractive C5 design delivers incredible range with only a 10.25 in (260 mm) diameter integrated antenna. With cutting edge dual 45º slant polarization design and aperture efficiency of greater than 50%, the C5 delivers 20 dBi antenna gain in the smallest design possible.

Compact But Powerful

TDMA GPS Sync Client

TDMA GPS Sync Client

Client-side support for the Mimosa C5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point, and can dynamically request upstream bandwidth. As opposed to alternative reserved (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.


Multi-User MIMO

A key component to scaling network efficiency is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum "spatially" via unique antenna beamforming. Each client device collaborates spatial geographic information with its associated Mimosa C5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

Multi-User MIMO

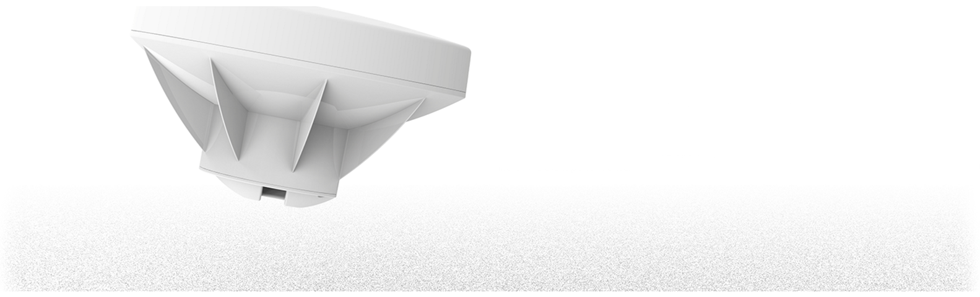

Working Above The Noise

Advanced Auto-Gain Control (AGC) techniques automatically squelch out underlying interference with only 10 dB operating margin required to deliver incredible client performance.

Working Above The Noise

Rugged and Affordable

Protection from harsh environments now comes at an affordable cost. The C5 includes a unique cable boot environment protector and sealing gel, and accommodates installation practices for unterminated and pre-terminated RJ-45 cable connectors.

Rugged and Affordable

Add Subscribers With Ease

Install, aim and go! Our multipoint solution is designed to instantly securely add C5 client devices to any Mimosa A5 on your network automatically with 1-click authentication. We've eliminated manual installation and pre-provisioning complexity, letting you focus on adding subscribers quickly.



Mount

Mount

Aim

Aim

One Click Connect

One Click Connect

New Happy Customer

New Happy Customer

Specifications:


Mimosa C5 Client Specifications
Performance
Max Throughput 500+ Mbps IP (866 Mbps PHY)
Wireless Protocols WiFi Interop, Mimosa GPS Sync (TDMA)**
Modes Client Mode only
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256-QAM
Bandwidth* 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
Frequency Range 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
Max Output Power 20 dBm
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
Gain 20 dBi
Beamwidth (3dB) 14° (azimuth and elevation)
Cross-Polar isolation >20 dB
Polarization Dual 45° slant polarization
Power
Max Power Consumption 7W
System Power Method 802.3at compliant
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection (sold separately)
Physical
Dimensions Width: 153.31 mm (6.04”)
Diameter: 260.33 mm (10.25”)
Weight 0.72 kg (1.59 lbs)
Enclosure Characteristics Outdoor UV-stabilized engineered polymer
Wind Survivability 200 km/h (125 mph)
Wind Loading 39 kg @ 160 km/h (86 lbs @ 100 mph)
Mounting Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles. Azimuth and Elevation adjustability only provided via J-Mount and FlexiMount elevation adjustment and hose clamp loosened rotation on the pole.
Environmental
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Multi-User MIMO** CPE is MU-MIMO capable
Network Processing Advanced AP control for capacity and subscriber management
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x RADIUS
QoS Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release

Antenna Patterns:

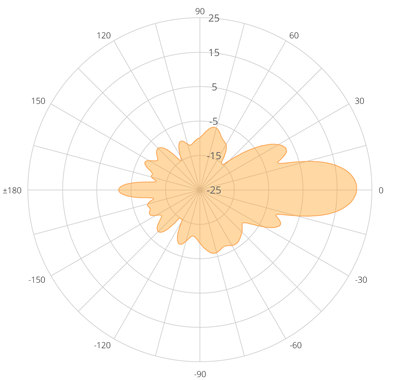

Azimuth Polar Plot

Azimuth Polar Plot

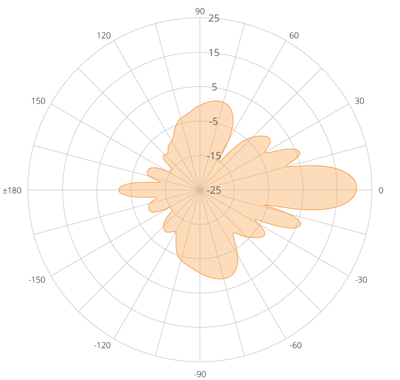

Elevation Polar Plot

Elevation Polar Plot

Views:

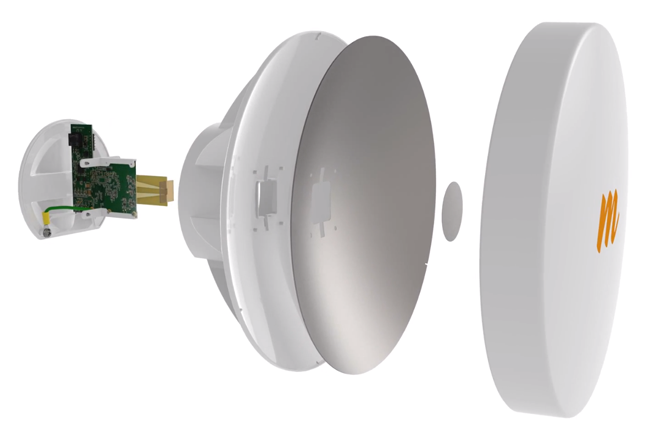

Explode View

Front View
Front View

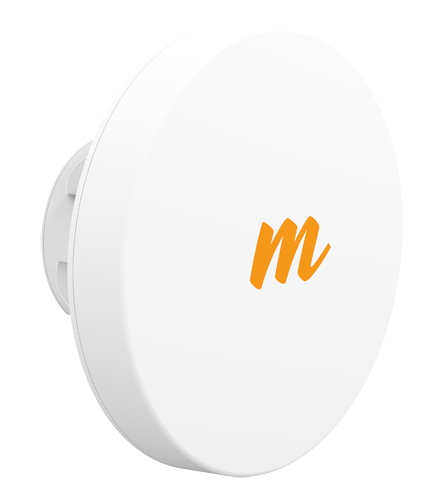

Angle View
Angle View

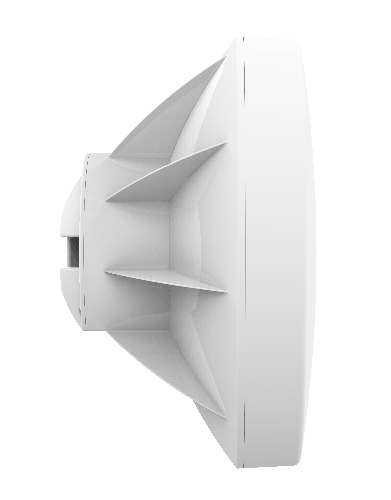

Side View
Side View

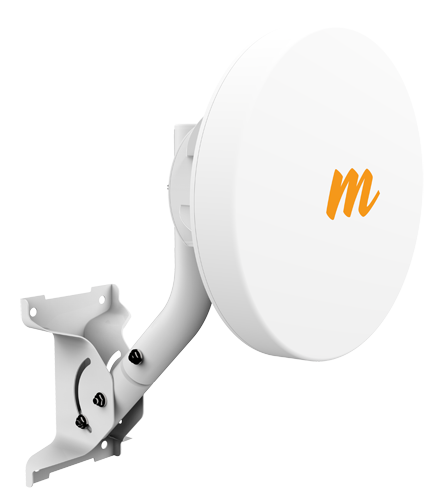

Angle with Mounted Bracket View
Angle with Mounted Bracket View


Side with Mounted Bracket View
Side with Mounted Bracket View


Package Contents View
Package Contents View


Accessories:


Advanced J-Mount

Advanced J-Mount

FlexiMount

FlexiMount

Gigabit POE Injector

Gigabit POE Injector

Gigabit NID

Gigabit NID

Documentation:

Download the Mimosa C5 Client Datasheet (.PDF)
