Mimosa C5c Connectorized Client
No Client Too Far

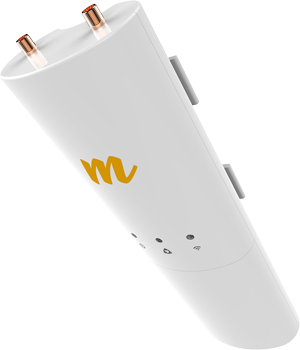

Mimosa C5c Connectorized Client

Mimosa Wireless Products
Mimosa Access Point
Mimosa C5c 4.9-6.2 GHz Connectorized Client Radio
#C5c
Our Price: $119.00
Special Promo!Mimosa C5c 4.9-6.2 GHz Connectorized Client Radio - NEW PROMO!
Buy Three Get One Free Promo, Quantity: 4
#C5c-Promo
Special: $357.00

Click here to jump to more pricing!

Overview:

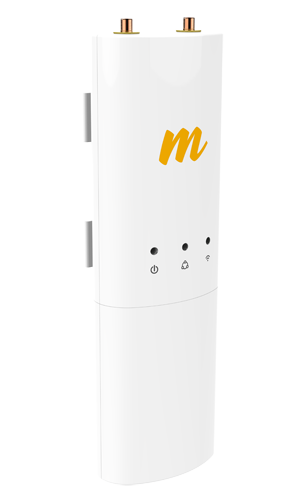

Mimosa C5c Connectorized ClientThe Mimosa C5c is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. Incorporating unique Multi-User MIMO technology and TDMA client technology for the Mimosa GPS sync enabled network, the C5c enables the fastest speeds and is the most scalable wireless access solution available today. The C5c is ideal for professionally installed rural fixed wireless and long range applications.

Flexible Antenna Options
Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5c has dual RP-SMA connectors for easy cabled antenna connectivity. It can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems.

Multi-User MIMO
A key component to scaling networks efficiently is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum “spatially” via unique antenna beamforming. Each client device shares spatial geographic information with its associated Mimosa A5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

TDMA GPS Sync Client
The C5c offers client-side support for the Mimosa A5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

Applications


Professionally installed suburban and rural fixed wireless

Professionally installed rural fixed wireless

Short to mid-range client endpoint

Short to mid-range client endpoint*

*Distances vary based on Mimosa C5c access point power and antenna gain. Please refer to the Mimosa Design Tools to simulate performance with your regional wireless regulatory restrictions.

Features:

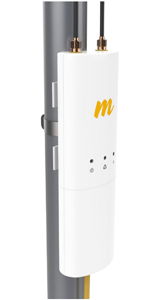

Flexible Antenna Options
Flexible Antenna Options

Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5c supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.



TDMA GPS Sync Client

Client-side support for the Mimosa C5c multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point, and can dynamically request upstream bandwidth. As opposed to alternative reserved (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

TDMA GPS Sync Client

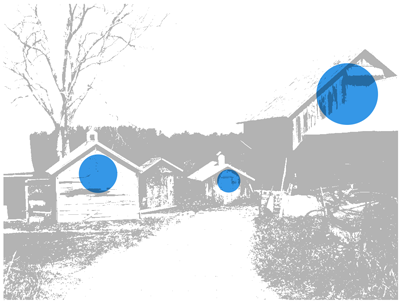

Multi-User MIMO


Multi-User MIMO

A key component to scaling networks efficiently is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum "spatially" via unique antenna beamforming. Each client device collaborates spatial geographic information with its associated Mimosa C5c device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

Specifications:


Mimosa C5c Client Specifications
Performance
Max Throughput 500+ Mbps IP (866 Mbps PHY)
Wireless Protocols WiFi Interop, Mimosa GPS Sync (TDMA)**
Modes Client Mode only
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256-QAM
Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments for GPS Sync;
Tunable to standard WiFi channels for WiFi Interop
Frequency Range 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
Max Output Power 20 dBm
Sensitivity (MCS 0) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 15W
System Power Method 802.3at compliant
PoE Power Supply Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection (sold separately)
Physical
Dimensions Depth - 26.5 mm (1.04”)
Width - 65 mm (2.56”)
Height - 177 mm (6.97”)
Mounting Single pole strap
Connector Type RP-SMA (x2)
Environmental
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Multi-User MIMO** CPE is MU-MIMO capable
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x RADIUS
QoS Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release

Views:

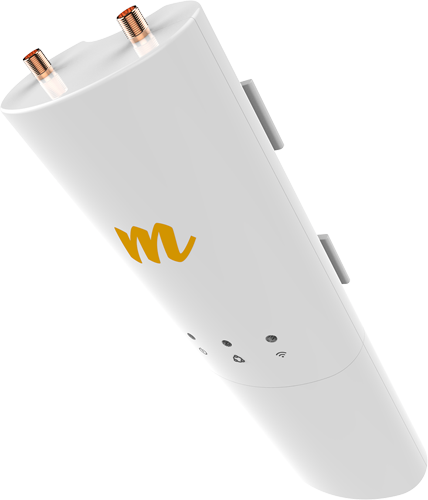

Angle View
Angle View

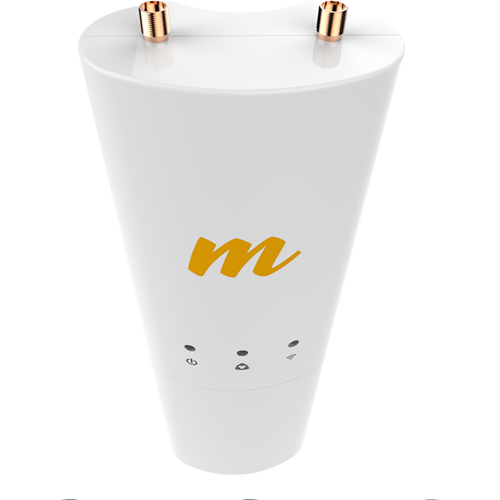

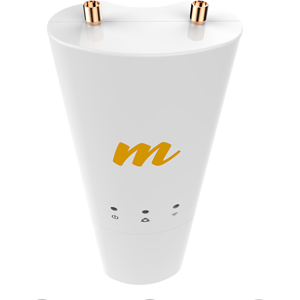

Top View
Top View

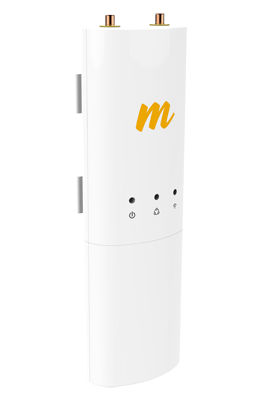

Angle View
Angle View


Documentation:

Download the Mimosa C5c Client Datasheet (.PDF)
