Mimosa Mounting Options Galore


Every installation can be unique so flexibility in mounting approach is critical. The C5 easily attaches to specially designed Mimosa mounting accessories.

Advanced J-Mount

Advanced J-Mount

Mimosa Wireless Products
Mimosa Accessories
Mimosa Advanced J-Mount Pole (P/N 100-00043)
#J-Mount
Our Price: $9.99

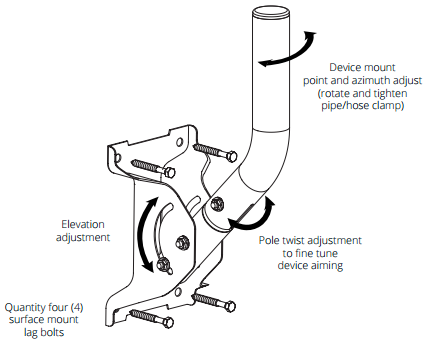

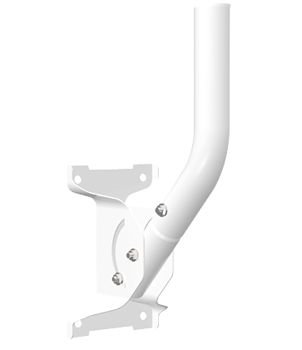

The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.


Mimosa Advanced J-Mount Specifications
Weight 0.96 kg (33.8 oz)
Mounting Base 191 mm (7.52“) x 120 mm (4.72“)
Pole Length 355 mm (14“)
Pole Outside Diameter 38 mm (1.5“)
Mounting Options Surface mount with four screw hole points
Assembly Pre-assembled with a white powder coated finish. Includes four (4) 6.35 mm (0.25”) lag bolts. Pipe/hose clamps not included.
Advanced J-Mount


FlexiMount

FlexiMount

Mimosa Wireless Products
Mimosa Accessories
Mimosa Flexible Pole and Surface Mount (P/N 100-00041)
#FlexiMount
Our Price: $6.99

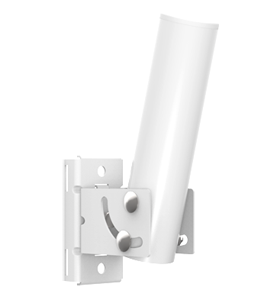

The Mimosa FlexiMount pole and surface mount accessory accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the C5 relative to the wall is important.


Mimosa FlexiMount Specifications
Weight 0.43 kg (15.2 oz)
Mounting Base 45 mm (1.77“) x 80 mm (3.15“)
Pole Length 100 mm (3.94“
Pole Outside Diameter 38 mm (1.5“)
Mounting Options Pole mount with two pipe clamp or surface mount with two screw hole points
Assembly Pre-assembled with a white powder coated finish. Mounting screws and pipe/hose clamps not included.

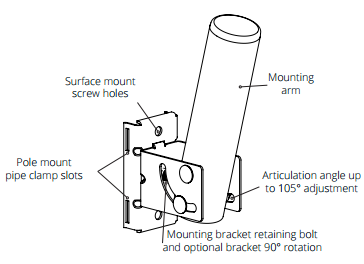

FlexiMount Diagram

Vertical Poles
The FlexiMount comes assembled ready for vertical pole configurations, using the indicated pipe clamp slots in the diagram below.

Vertical Poles

Angled and Flat Poles
The FlexiMount can be mounted in any orientation on angled and flat poles. To pivot the articulation direction, rotate the mounting base in 90° constraints to achieve the desired orientation.

Angled and Flat Poles

Flat Surfaces
The FlexiMount includes two (2) convenient mounting screw hole points, allowing mounting to any vertical, sloped or horizontal surface.

Flat Surfaces



Download the Mimosa Accessories Datasheet (.PDF)
