Mimosa Gigabit POE Injector
Power Without the Mess


Gigabit POE Injector

Mimosa Wireless Products
Mimosa Accessories

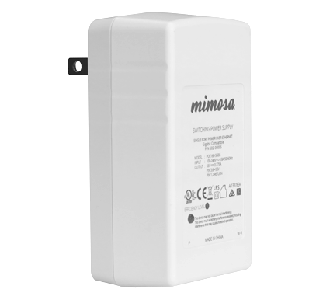

Mimosa Compact Wall Plug Gigabit 48V Passive PoE Injector (P/N 100-00051)
#PoE-48V-NA
Our Price: $9.99

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

Mimosa Gigabit PoE Wall Plug Specifications (for C5 and C5c CPE Radios)
Data Transfer Rate Gigabit rated
Connectors Two (2) RJ-45
LEDs Power Indicator
Input Voltage 100-240V ~ 0.8A 50-60 Hz
Output Voltage 56V===0.275A
PIN 3,6 +56V
PIN 1,2 RETURN
AC Plug Types Americas: Type A
EU: Type C
UK: Type G
AU/NZ: Type 1 -2 pin insulated
Dimensions 51 mm (2.0”) x 86 mm (3.4“) x 33 mm (1.3“)
Weight 0.11 kg (3.8 oz)
Operating Temperature -40 to +55 C
Compliance and Safety UL60950-1, IEC 60950-1, EN 55022, RoHS



Download the Mimosa Accessories Datasheet (.PDF)
