Mimosa B11 Licensed Backhaul
Redefining 10.0-11.7 GHz Gigabit Backhaul

Features:

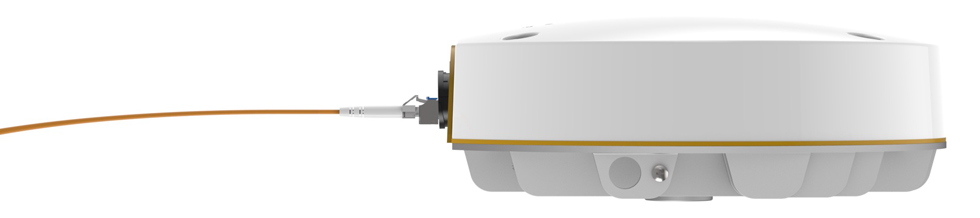

Just Add Fiber

Fiber to wireless is the future of connectivity, and the B11 is ready for it. Simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you’re not quite ready for fiber, the B11 is still for you with a standard Gigabit Power-over-Ethernet connection.

Bandwidth Changes Like Night & Day

Nighttime streaming video has driven downstream traffic to peak at nearly 90% of consumption, while daytime symmetric traffic is as critical as ever to businesses. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized. The B11, however, can dynamically adapt to bandwidth demand using Auto-TDMA technology, maximizing spectrum utilization throughout the day.

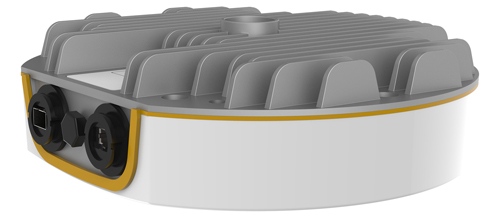

Precision Engineered for Reliability

Licensed spectrum has always increased link reliability, but at great expense and with limited bandwidth flexibility. Our precision engineering of the B11 provides groundbreaking bandwidth control, spectrum efficiency and incredible industry leading stability.

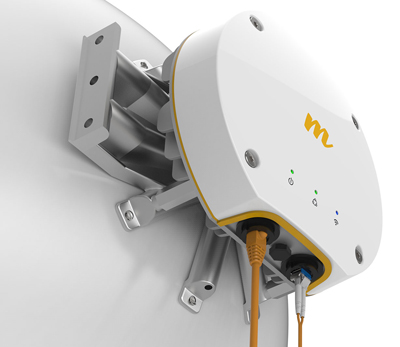

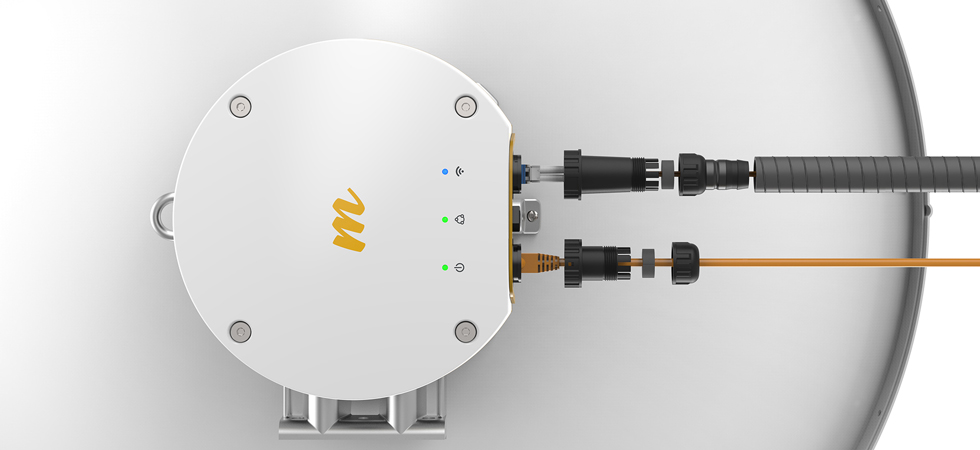

IP67 Out of the Box

The B11 is ready to withstand the elements right out of the box. It comes with an Ethernet and SFP* cage IP67 sealing gland, designed specifically for sealing pre-terminated cables.

* Standard flexible conduit for connection to the supplied Fiber port sealing gland is not supplied as custom lengths are typically required.

Revolutionary FCC Licensing

Obtaining an FCC license is traditionally an archaic, unpredictable process, exacerbated by microwave radios that support only a small fraction of the 10.7-11.7 GHz band.

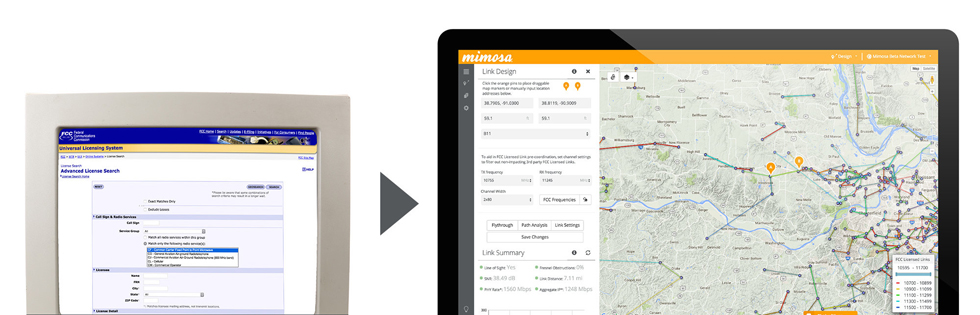

For the first time in the industry, we radically simplified the licensing process, providing instant visibility into the FCC ULS database to quickly assess the surrounding links. We call this “pre-coordination,” giving you an early indication of coordination viability. We’ve also partnered with well-known license coordination experts to deliver low cost coordination services. Taking it one step further, our single B11 radio can support the entire 10.7-11.7 GHz band, maximizing your ability to find a clear, licensable channel.

Right on Target

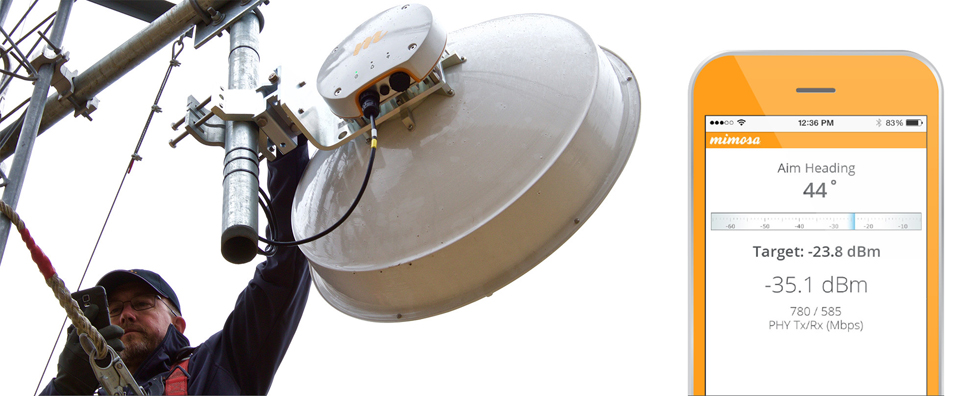

In the past, aiming your antenna to find the best signal has been more art than science. We’ve taken the guesswork out of antenna aiming by adding 2.4 GHz Wi-Fi right in the radio, turning any smartphone into the most sophisticated aiming tool on the planet! Now installers can instantaneously view radio details, and target signal levels with the most precise aiming technology available in the industry.

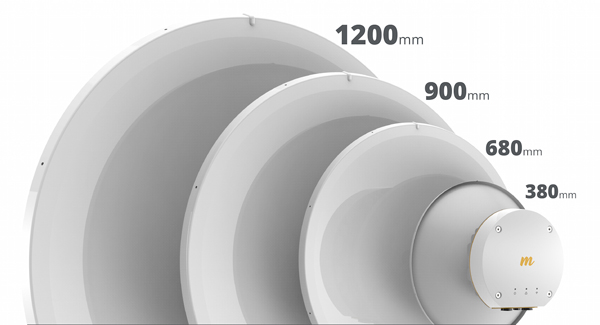

All The Size

From the shortest to the longest links, we can point you to all the antenna sizes* you need to properly license and coordinate your B11 links.

* Minimum dish sizes vary due to country specific regulations. 380mm antennas are not available for use in the US for the 10.7-11.7 GHz band.

Specifications:

Mimosa B11 Backhaul Specifications
Performance
Max Throughput	Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
Low Latency	< 1 ms
Wireless Protocols	TDMA, TDMA-FD
Radio
MIMO & Modulation	4x4:4 MIMO OFDM up to 256 QAM
Bandwidth	Single or dual 20/40/80 MHz channels
Frequency Range	10000-11700 MHz restricted by country of operation
Max Output Power	27 dBm
Sensitivity (MCS 0)	-87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
Power
Max Power Consumption	30W
System Power Method	48 V DC 802.3 at compliant power injectors
System Lightning & ESD Protection	6 kV
PoE Power Supply	Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions	Height: 260 mm (10.2”) Width: 158 mm (9.6”) Depth: 70 mm (2.8”)
Weight	2 kg (4.5 lbs)
Enclosure Characteristics	Outdoor UV stabilized plastic Aluminum mounting panel
Wind Survivability	200 km/h (125 mph)
Wind Loading	9.8 kg @ 160 km/h (21.8 lbs @ 100 mph)
Mounting	Direct mount to compatible antenna
Antenna Connection	Direct connect to circular dual polarized antenna
Network Interfaces	Single connection Ethernet or fiber
Environmental
Outdoor Ingress Protection Rating	IP67
Operating Temperature	-40°C to +55°C (-40°F to 131°F)
Operating Humidity	5 to 100% condensing
Operating Altitude	4,420 m (14,500’) maximum
Shock & Vibration	ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet	10/100/1000-BASE-T
Fiber Capable	SFP Cage included Radio accepts either copper Ethernet or SFP but does not support simultaneous operation
Dual Protocol Operation	2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
Management Services	Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access
Smart Antenna Alignment	Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
Security	128-bit AES PSK with hardware acceleration
QoS	Supports 4 pre-configured QoS levels
GPS Location	GNSS-1 (GPS + GLONASS)
Collocation Synchronization	1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth radio
Regulatory + Compliance
Approvals	FCC Part 101
RoHS Compliance	Yes

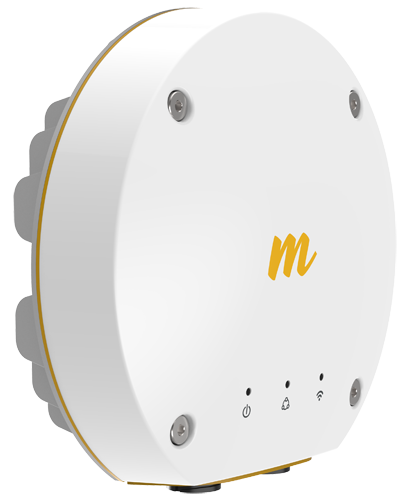

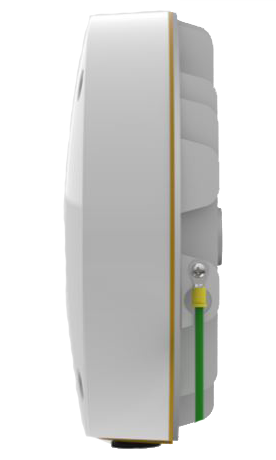

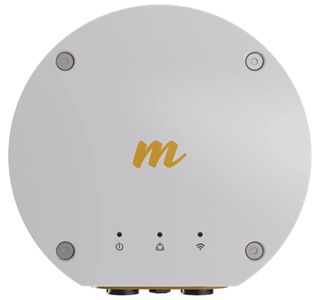

Views:

Backhaul Comparison:

B5	B5c	B5-Lite	B11
Unlicensed Backhaul 25 dBi 5.15 to 5.85 GHz Bandwidth: 12 mi @ 500 Mbps Bandwidth: 40 mi @ 100 Mbps Auto Everything Collocation* Sync Dual Link TDMA-FD* IP67	Unlicensed Connectorized Backhaul Requires Antenna 4.9 to 6.2 GHz Bandwidth: 60+ mi @ 500 Mbps Bandwidth: 120+ mi @ 100 Mbps Auto Everything Collocation* Sync Dual Link TDMA-FD* IP67	Unlicensed Backhaul 20 dBi 4.9 to 6.2 GHz Bandwidth: 1.5 mi @ 500 Mbps Bandwidth: 10 mi @ 100 Mbps Auto Everything	Licensed Backhaul Requires Antenna 10.0 to 11.7 GHz Bandwidth: 60+ mi @ 500 Mbps Bandwidth: 120+ mi @ 100 Mbps Auto Everything Collocation* Sync Dual Link TDMA-FD* IP67 Licensed SFP

*TDMA and Collocation Synchronization

Documentation:

Download the Mimosa B11 Backhaul Datasheet (.PDF)
